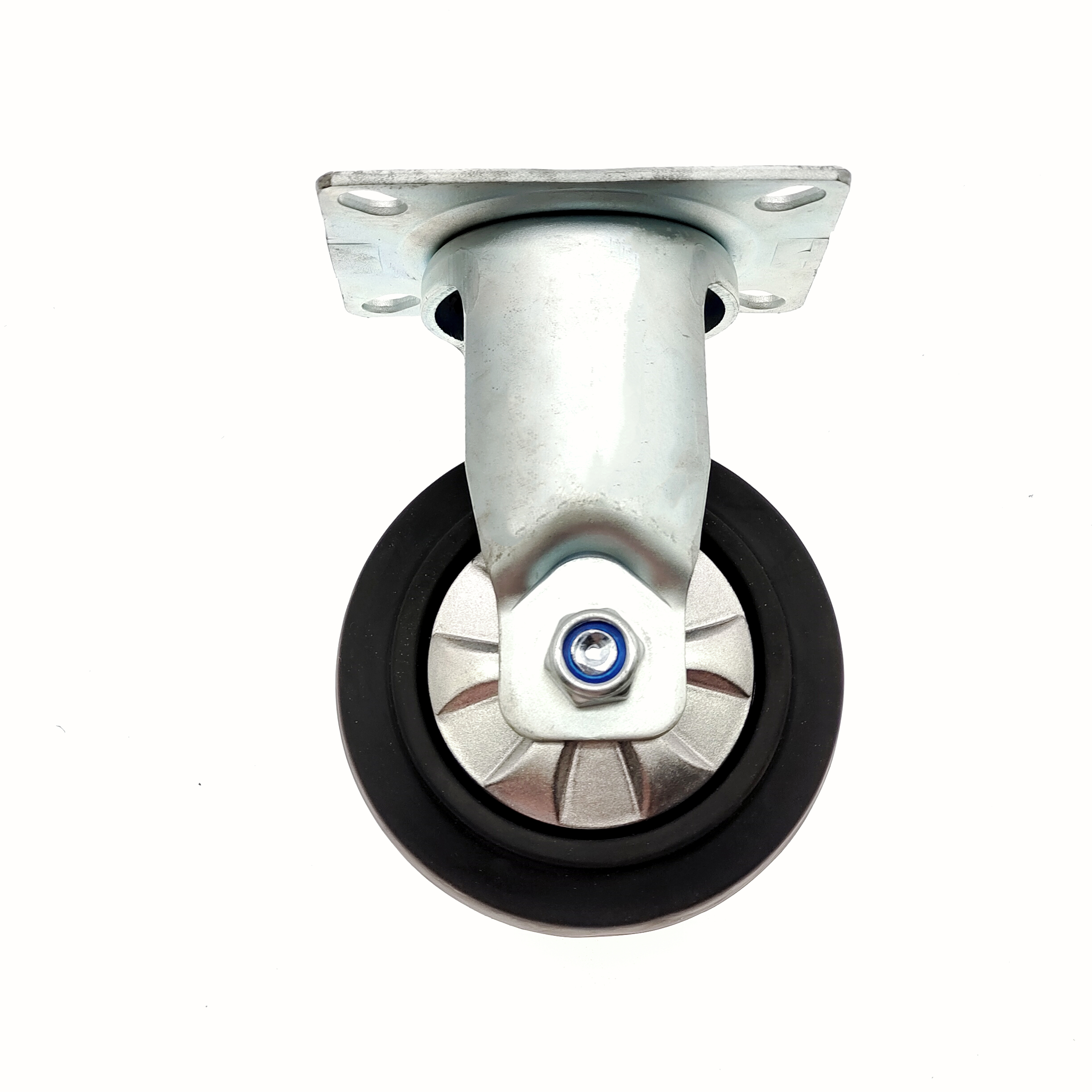

3 inch 4 inch 5 inch 6 inch Rigid Fix Ball Bearing Thread Guard Mid Heavy Duty Elastic Thermoplastic Rubber TPR Caster Wheel1
- Model Number:
-
-
- Material:
-
POLYURETHANE, Steel, Thermoplastic Rubber
- Type:
-
Plate Casters, Stem Casters, Bolt-Hole Casters
- Style:
-
Rigid, Swivel
- Place of Origin:
-
Guangdong, China
- Product name:
-
Thermoplastic Rubber TPR Trolley Caster Wheel
- Wheel diameter:
-
3" 4" 5" 6"
- Tread width:
-
1.5" (38mm)
- Bearing:
-
double ball bearing
- Wheel material:
-
PU (POLYURETHANE)
- Load Capacity:
-
110-200 kgs
- Color:
-
Grey, black...
- Finish:
-
Zinc plated
- Mounting type:
-
Top plate or customized
- Rim material:
-
PP
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 10X10X10 cm
- Single gross weight:
- 3.000 kg
- Package Type:
- Mid Heavy Duty Industrial 150 mm Swivel Plastic Thread Guard Orange Swivel PU Handle Trolley Caster Wheel Standard export packing
- Picture Example:
-
- Lead Time :
Quantity(Pieces) 1 - 10000 >10000 Est. Time(days) 15 To be negotiated
3 inch 4 inch 5 inch 6 inch Rigid Fix Ball Bearing Thread Guard Mid Heavy Duty Elastic Thermoplastic Rubber TPR Caster Wheel
The most important for these mid heavy duty casters is that they are between heavy duty and medium duty casters, the the right load capacity for you.
You can free choose the mounting type for these series:
Threaede stem (Screw stem)
bolt hole ( hollow stem, stemless),
Solid stem ( round stem, square stem with any size you need)
Top plate ( American mounting size, European mounting size, Korean mounting size, Japanese mounting size, or any customized mounting dimension you need).
Further information, please don't hesitate to contact us: +86 138 2277 3800 or happyyans(at)vip.163.com
| Product image | Desc. | Wheel diameter (mm) |
Wheel width (mm) |
Overall height (mm) |
Top plate size (mm) |
Hole spacing (mm) |
Load capacity (kg/pc) |
| |
Medium heavy duty caster, PU Wheel with double ball bearing, rigid. | 75 | 37.5 | 113 | 101*82 | 76*56 | 120 |
| 100 | 37.5 | 139 | 101*82 | 76*56 | 150 | ||
| 125 | 37.5 | 161 | 112*100 | 84x74 | 180 | ||
| 150 | 37.5 | 190 | 112x100 | 84x74 | 200 | ||
|
|
Medium heavy duty caster, PU Wheel with double ball bearing, swivel. | 75 | 37.5 | 113 | 101*82 | 76*56 | 120 |
| 100 | 37.5 | 139 | 101*82 | 76*56 | 150 | ||
| 125 | 37.5 | 161 | 112x100 | 84x74 | 180 | ||
| 150 | 37.5 | 190 | 112x100 | 84x74 | 200 | ||
| |
Medium heavy duty caster, PU Wheel with double ball bearing, swivel with total brake. | 75 | 37.5 | 113 | 101*82 | 76*56 | 120 |
| 100 | 37.5 | 139 | 101*82 | 76*56 | 150 | ||
| 125 | 37.5 | 161 | 112x100 | 84x74 | 180 | ||
| 150 | 37.5 | 190 | 112x100 | 84x74 | 200 |
All our caster wheels are made of new material, ECO-friendly, good function and long working life.
Our caster forks are ECO-friendly high quality plating, pass the national standard corrosion test.
