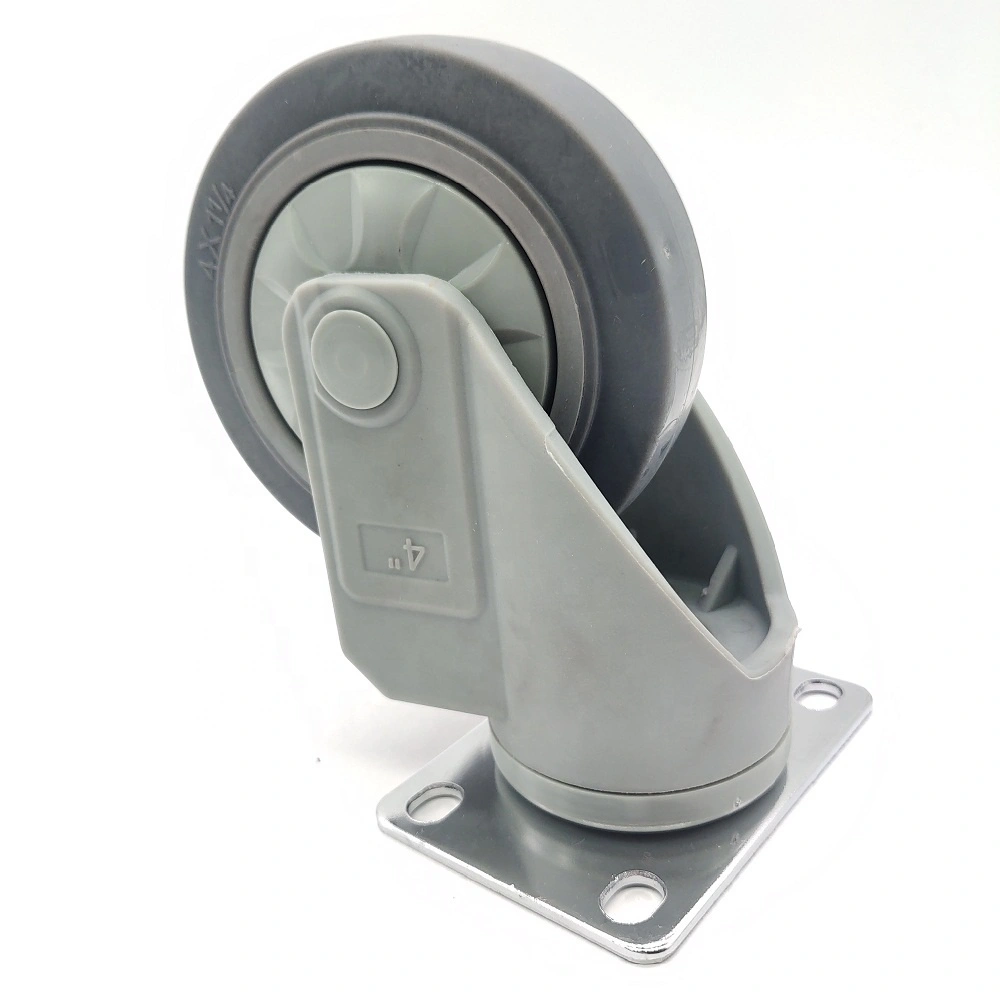

4 inch Medium Duty Top Plate Waterproof Antirust Plastic Frame High Elastic TPR Rubber Caster wheel
- Model Number:
-
Plastic yoke medium duty caster
- Material:
-
Polypropylene, Steel, Thermoplastic Rubber
- Type:
-
Plate Casters
- Style:
-
Swivel
- Place of Origin:
-
Guangdong, China
- Product name:
-
Plastic Frame High Elastic TPR Rubber Caster wheel
- Wheel diameter:
-
4"(100mm)
- Tread width:
-
32mm
- Bearing:
-
6202 ball bearing
- Wheel material:
-
Elastic Thermoplastic rubber (TPR)
- Load Capacity:
-
70 kg
- Color:
-
Grey TPR wheel
- Wheel rim material:
-
PP rim
- Top plate thickness:
-
3 mm
- Top plate size:
-
92*65mm
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 15X12X10 cm
- Single gross weight:
- 1.200 kg
- Package Type:
- We put the Plastic Bracket Ball Bearing Friction Grip Ring TPR wheel Caster into the transparent plastic bag, and then packed into the the master carton.
- Picture Example:
-
- Lead Time :
Quantity(Pieces) 1 - 8 9 - 500 501 - 2000 >2000 Est. Time(days) 4 7 15 To be negotiated
3 4 5 inch Medium Duty Waterproof Antirust Plastic Frame High Elastic TPR Rubber Caster wheel
A non-marking soft rubber tread wheel used for applications under moderate load ratings.
Applications: Furniture, electronic equipment, medical equipment, food manufacturing, service carts...
The plastic yoke is waterproof, antiurst, anti-corrosive.
| Product image | Desc. | Wheel diameter (mm) |
Wheel width (mm) |
Overall height (mm) |
Top plate size (mm) |
Hole spacing (mm) |
Grip ring stem size (mm) |
Threaded stem size (mm) |
Load capacity (kg/pc) |
| Medium duty plastic yoke caster, high elastic TPR Wheel, grip ring stem / threaded stem / top plate, swivel | 75 | 32 | 106.5 | 92*65 | 73*45 | Φ11*36 | M12*30 | 70 | |
| 100 | 32 | 130.5 | 92*65 | 73*45 | Φ11*36 | M12*30 | 90 | ||
| 125 | 32 | 155 | 92*65 | 73*45 | Φ11*36 | M12*30 | 110 | ||
|
|
Medium duty plastic yoke caster, high elastic TPR Wheel, grip ring stem / threaded stem / top plate, swivel | 75 | 25X2 | 110 | 92*65 | 73*45 | Φ11*36 | M12*30 | 70 |
| 100 | 25X2 | 129 | 92*65 | 73*45 | Φ11*36 | M12*30 | 90 | ||
| 125 | 25X2 | 155 | 92*65 | 73*45 | Φ11*36 | M12*30 | 110 | ||
| Medium duty plastic yoke caster, high elastic TPR Wheel, grip ring stem / threaded stem / top plate, swivel with total brake. | 75 | 25X2 | 110 | 92*65 | 73*45 | Φ11*36 | M12*30 | 70 | |
| 100 | 25X2 | 129 | 92*65 | 73*45 | Φ11*36 | M12*30 | 90 | ||
| 125 | 25X2 | 155 | 92*65 | 73*45 | Φ11*36 | M12*30 | 110 |
Top plate (USA standard mounting dimension)
For example, we install these plastic yoke casters in this luxury food service trolley.
We can provide strong casters packing and flexible shipping way according to customers' requirments.
