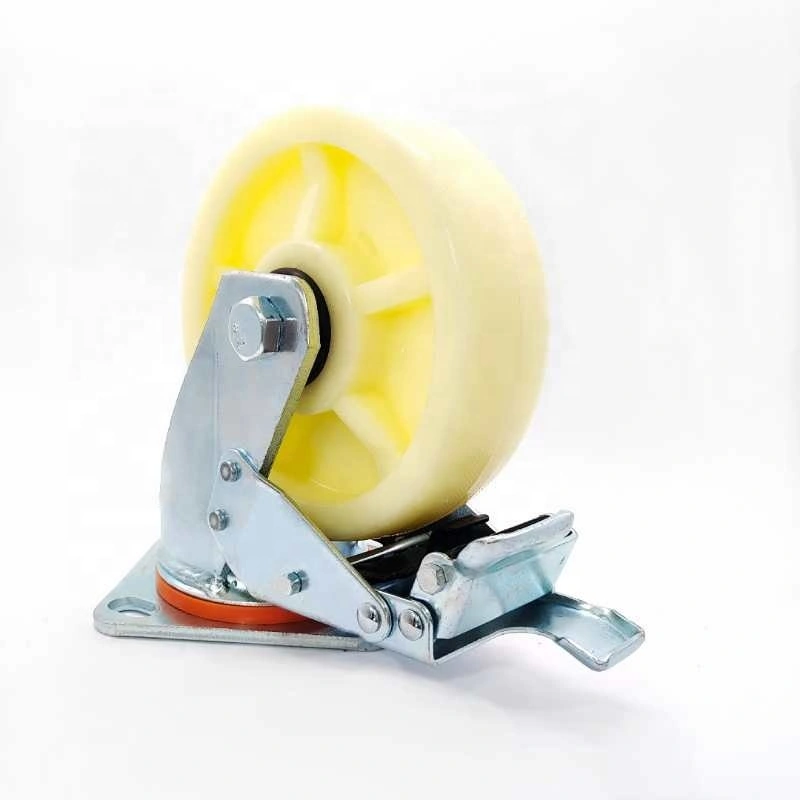

6 Inch Rotatable Retractable Industrial Heavy Duty High Loading Trolley Full Injection PP Polypropylene Caster Wheel
6 Inch Rotatable Retractable Industrial Heavy Duty High Loading Trolley Full Injection PP Polypropylene Caster Wheel
| Product image | Desc. | Wheel diameter (mm) | Wheel width (mm) | Overall height (mm) | Top plate size (mm) | Hole spacing (mm) | Load capacity (kg/pc) |
| Heavy duty caster, PP wheel with double ball bearing, fixed. | 100 | 50 | 142 | 114x100 | 85x73 | 220 | |
| 125 | 50 | 165 | 114x100 | 85x73 | 240 | ||
| 150 | 50 | 190 | 114x100 | 85x73 | 310 | ||
| 200 | 50 | 240 | 114x100 | 85x73 | 370 | ||
| Heavy duty caster, PP wheel with double ball bearing, swivel. | 100 | 50 | 142 | 114x100 | 85x73 | 220 |
| 125 | 50 | 165 | 114x100 | 85x73 | 240 | ||
| 150 | 50 | 190 | 114x100 | 85x73 | 310 | ||
| 200 | 50 | 240 | 114x100 | 85x73 | 370 | ||
| | Heavy duty caster, PP wheel with double ball bearing, swivel with total brake. | 100 | 50 | 142 | 114x100 | 85x73 | 220 |
| 125 | 50 | 165 | 114x100 | 85x73 | 240 | ||
| 150 | 50 | 190 | 114x100 | 85x73 | 310 | ||
| 200 | 50 | 240 | 114x100 | 85x73 | 370 |
Top plate (USA standard mounting dimension)
All our caster wheels are made of new material, ECO-friendly, good function and long working life.
Our caster forks are ECO-friendly high quality plating, pass the national standard corrosion test.
Patented special brake struture for easy brake and strong brake, no mark on the wheel after braking.
Application:
1. Platform trucks
2. Flatbed carts
3. Containers
4. Automotive equipment
5. Distribution carts
6. Warehouse equipment
For more information please contact Ms. Yan +86 138 2277 3800, Wechat: happyyans, Skype: Yan.and.friends
