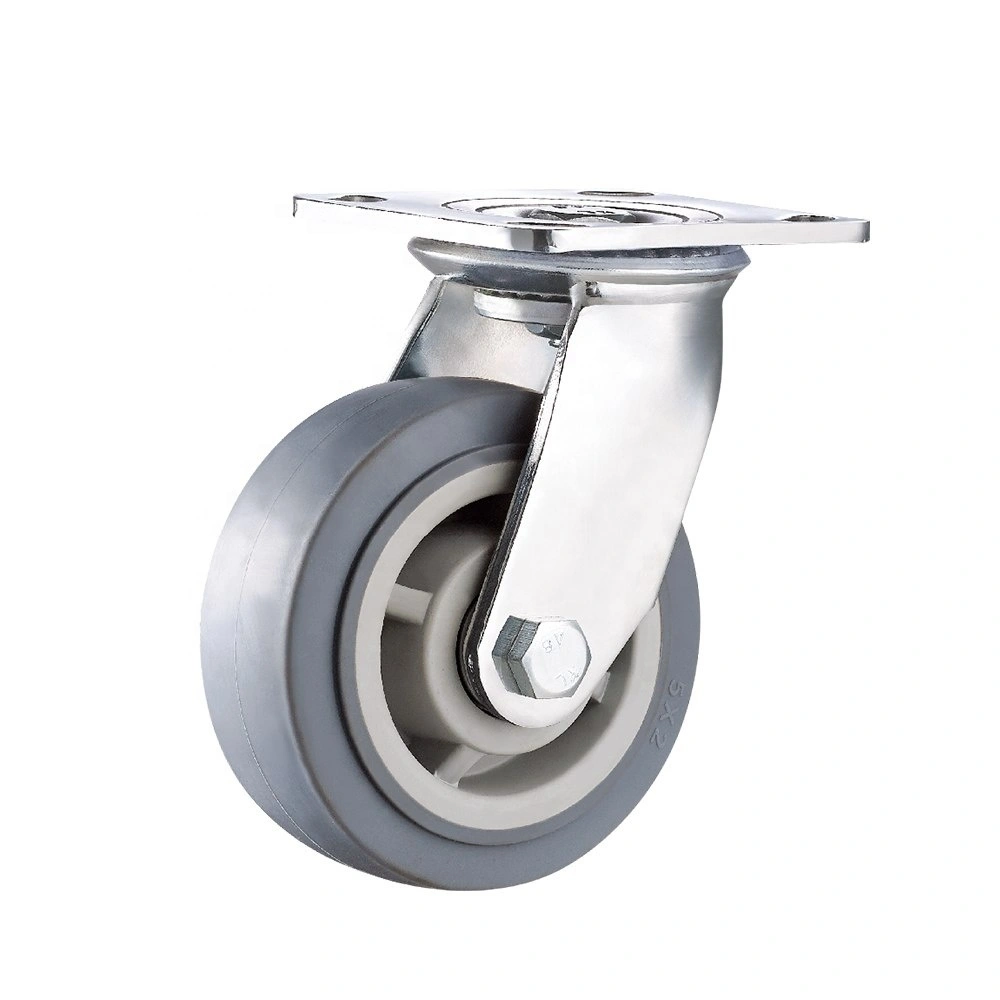

6'' Industrial Swivel TPR Double Ball Bearings Thermoplastic Rubber Heavy Duty Caster Wheels
- Material:
-
Thermoplastic Rubber
- Type:
-
Plate Casters
- Style:
-
Swivel
- Place of Origin:
-
Guangdong, China
- Product name:
-
Industrial Hot Sale Swivel Heavy Duty TPR Caster Wheels
- Usage:
-
Hardware,tools,fittings,carts,truck,trolleys
- Bearing:
-
Double ball bearing
- Fork Style:
-
Swivel without brake
- Plate thickness:
-
5.75mm
- Loading capacity:
-
250kg
- Finish:
-
Zinc plated
- Color:
-
Grey
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 15.5X11.5X11 cm
- Single gross weight:
- 2.000 kg
- Package Type:
- Export carton/pallet
- Picture Example:
-
- Lead Time :
Quantity(Pieces) 1 - 200 201 - 1000 1001 - 2000 >2000 Est. Time(days) 5 7 15 To be negotiated
Industrial Swivel TPR Double Ball Bearings Thermoplastic Rubber Heavy Duty Caster Wheel
|
|
Top Plate Swivel |
Top Plate Side Brake |
Top Plate Total Brake |
|
Feature: · Zinc Plated Finish · Double Ball Bearing · Double Ball Bearing Race Way · PU Wheel |
|||||||
|
Wheel Dia |
Load Capacity |
Tread Width |
Load Height |
Swivel Radius |
Plate Size |
Hole Spacing |
Hole Dia |
|
100mm ( 4'') |
220kgs (485lbs) |
50mm |
135mm |
86.5mm |
114X100mm |
85X73mm |
11mm |
|
120mm ( 5'') |
280kgs (617lbs) |
50mm |
158mm |
104.5mm |
114X100mm |
85X73mm |
11mm |
|
150mm ( 6'') |
330kgs (727lbs) |
50mm |
188mm |
118mm |
114X100mm |
85X73mm |
11mm |
|
200mm ( 8'') |
420kgs (926bs) |
50mm |
235mm |
143mm |
114X100mm |
85X73mm |
11mm |
Our factory established in Zhongshan since 2005 which is one of the leading caster manufacturer in China.We have developed more than 2500 items for different casters & caster wheels, including the rubber casters, Perfusion rubber casters, The conductive rubber wheel,phenolic casters, nylon casters, cast iron casters(steel casters), polyurethane casters(PU casters), polyolefin casters (PP casters), shopping cart casters, TPR casters, TPU casters,Heavy duty casters, Shock Absorbing Casters, Pneumatic casters, Airline conveyor caster, Low center of gravity casters,Japanese model casters, Caster components, other products, etc. It can also provide designing or fabricating according to the coming drawings or samples.
If you still have any questions, Please do not hesitate to contact with us by E-mail.
We have best quality of imported material, advanced manufacturing facilites such as Auto-Welding Machine, Rubber machine,Rubber mixer machine,Liquefier Machine, Injection Molding Machine, Automaticstamping line, CNC Lathe,Mold Workshop, Packing Workshop Assembling Line, etc. Of course, quality is the future of the enterprise. We have our own full sets of quality test machine to make sure the best quality of the products. Such as Hardness Test Machine, Caster Durability Test Machine, Brake System Test Machine, Salt Spray Test Machine, Hight Temperature Test Box, Impact Test etc.
We can provide strong casters packing and flexible shipping way according to customers' requirment.
If you are interested in our items, click below photo now to contact us and get the promotion price and free caster samples.
|
Why choose us? 1. Free charge & fast action for samples. 2. OEM & ODM acceptable. 3. Short lead time. 4. LOGO on products are acceptable. 5. Advanced machinery and equipments. 6. Stict quality control system. 7. Package could be adjusted. 8. Quick and effective reponse by salesmen.
Why our caster with good quality and competitive price? Our factory is a good managed and tidy factory, with high working efficiency, we have automatic stamping machine to lower the labor cost. Every working step is very smooth and all departments are cooperated very well. So we can lower our price. |
