Professional caster manufacturers - Dajin Caster

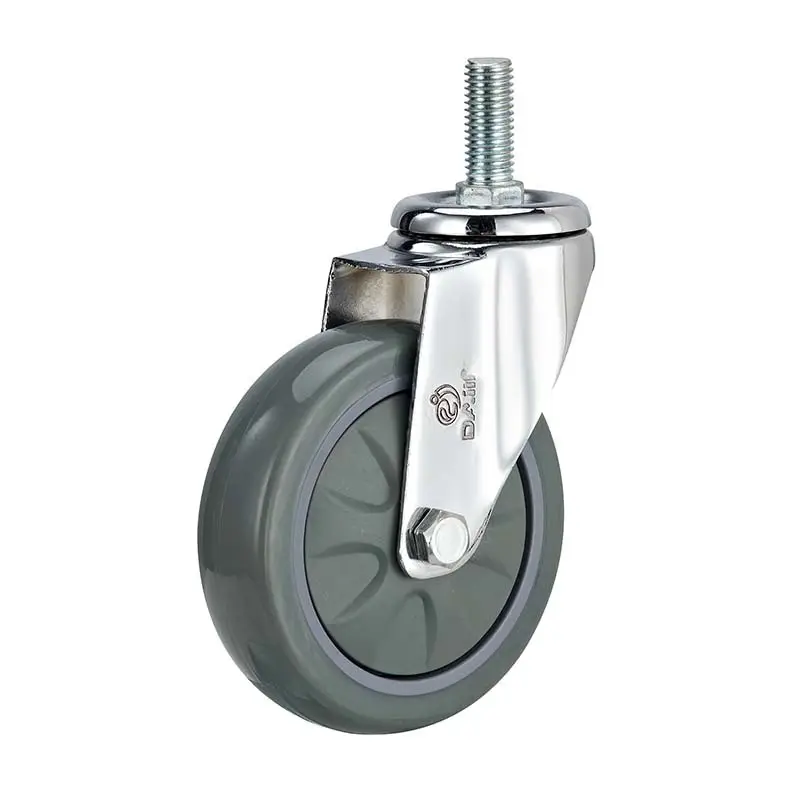

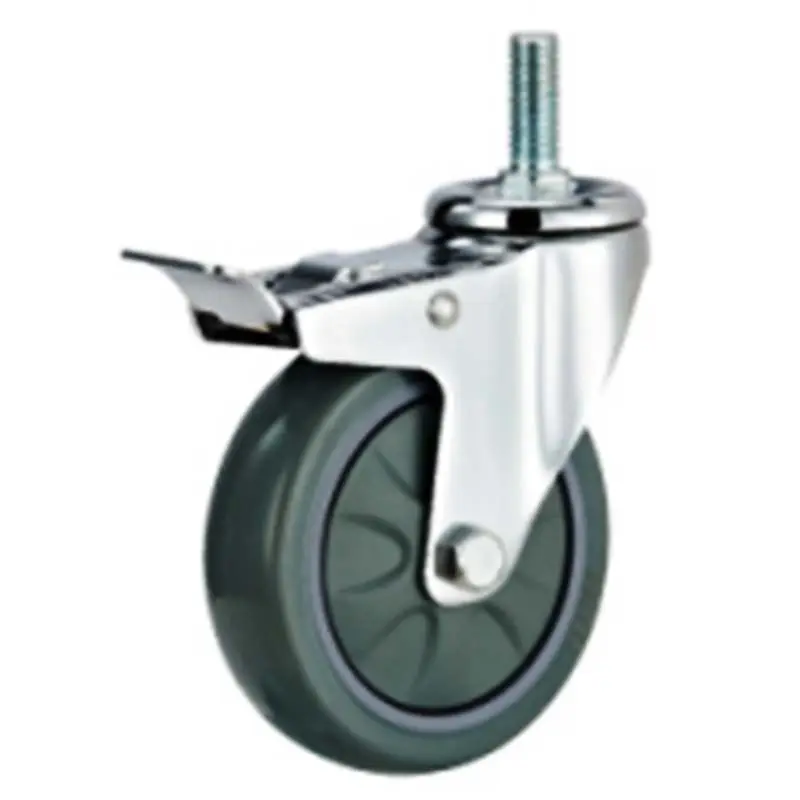

Dajin caster medium duty caster ball for trolleys 1

Dajin caster medium duty caster ball for trolleys 2

Dajin caster medium duty caster ball for trolleys 3

Dajin caster medium duty caster ball for trolleys 4

Dajin caster medium duty caster ball for trolleys

OEM Availability:

Yes

Brand:

PLEYMA

Inquiry

Company Advantages
1. The design concept of Dajin caster 2 swivel casters is based on modern green style. It is ideal for such floors as wood, laminate, ceramic, terracotta or carpeted
2. Because of its good breaking strength, good dye property, and excellent hygroscopicity, it is widely used in many industries such as apparel and medical treatment. Its wheel face design reduces friction and minimizes tread wear
3. In order to cater to the requirements of customers, Dajin caster has developed medium duty caster with 2 swivel casters . It provides quiet rolling without any squeaky sounds or noise
4. Using the concept of 2 swivel casters , Our products strongly show medium duty casters . Its wheel is less prone to get tangled with hair and debris on the floor

Dajin caster medium duty caster ball for trolleys 5

Dajin caster medium duty caster ball for trolleys 6

Product Parameters

Model	Type	Wheel diameter(mm)	Tread width(mm)	Wheel material	Mounting type	Overall height(mm)	Plate size(mm)	Hole spacing(mm)	Threaded stem size(mm)	Load capacity(kgs)
10Z10PPW0-050	Rigid	50	20	PP	Plate	64	58.5*47	46*35	/	50
10Z20PPW0-050	Swivel	50	20	PP	Plate	64	58.5*47	46*35	/	50
10Z23PPW0-050	Swivel with brake	50	20	PP	Plate	64	58.5*47	46*35	/	50
10Z30PPW0-050	Swivel	50	20	PP	Threaded stem	64	/	/	M12*25	50
10Z33RRB0-050	Swivel with brake	50	20	PP	Threaded stem	64	/	/	M12*25	50
10Z10PUC0-050	Rigid	50	20	PU	Plate	64	58.5*47	46*35	/	35
10Z20PUC0-050	Swivel	50	20	PU	Plate	64	58.5*47	46*35	/	35
10Z23PUC0-050	Swivel with brake	50	20	PU	Plate	64	58.5*47	46*35	/	35
10Z30PUC0-050	Swivel	50	20	PU	Threaded stem	64	/	/	M12*25	35
10Z33PUC0-050	Swivel with brake	50	20	PU	Threaded stem	64	/	/	M12*25	35
10Z10PTG0-050	Rigid	50	20	TPR	Plate	64	58.5*47	46*35	/	25
10Z20PTG0-050	Swivel	50	20	TPR	Plate	64	58.5*47	46*35	/	25
10Z23PTG0-050	Swivel with brake	50	20	TPR	Plate	64	58.5*47	46*35	/	25
10Z30PTG0-050	Rigid	50	20	TPR	Threaded stem	64	/	/	M12*25	25
10Z33PTG0-050	Swivel	50	20	TPR	Threaded stem	64	/	/	M12*25	25
10Z10PPW0-075	Swivel with brake	75	27	PP	Plate	92	69*57	55*42	/	75
10Z20PPW0-075	Swivel	75	27	PP	Plate	92	69*57	55*42	/	75
10Z23PPW0-075	Swivel with brake	75	27	PP	Plate	92	69*57	55*42	/	75
10Z30PPW0-075	Rigid	75	27	PP	Threaded stem	92	/	/	M12*25	75
10Z33RRB0-075	Swivel	75	27	PP	Threaded stem	92	/	/	M12*25	75
10Z10PUC0-075	Swivel with brake	75	27	PU	Plate	92	69*57	55*42	/	65
10Z20PUC0-075	Swivel	75	27	PU	Plate	92	69*57	55*42	/	65
10Z23PUC0-075	Swivel with brake	75	27	PU	Plate	92	69*57	55*42	/	65
10Z30PUC0-075	Swivel	75	27	PU	Threaded stem	92	/	/	M12*25	65
10Z33PUC0-075	Swivel with brake	75	27	PU	Threaded stem	92	/	/	M12*25	65
10Z10PTG0-075	Rigid	75	27	TPR	Plate	92	69*57	55*42	/	55
10Z20PTG0-075	Swivel	75	27	TPR	Plate	92	69*57	55*42	/	55
10Z23PTG0-075	Swivel with brake	75	27	TPR	Plate	92	69*57	55*42	/	55
10Z30PTG0-075	Swivel	75	27	TPR	Threaded stem	92	/	/	M12*25	55
10Z33PTG0-075	Swivel with brake	75	27	TPR	Threaded stem	92	/	/	M12*25	55

Product Application

Dajin caster medium duty caster ball for trolleys 7

Product Application

❃ Light industrial and institutional carts

❃ Furniture

❃ Metal brake/Plastic brake available

Company Features
1. Zhongshan Dajin caster Co.,Ltd. is a well-established enterprise that specializes in the manufacturing of 2 swivel casters . We have been focusing on providing high quality products for our customers. Zhongshan Dajin caster Co.,Ltd. has won the significant market of medium duty caster with its strong technical capability.
2. Zhongshan Dajin caster Co.,Ltd. has gained fame for its strong technical base.
3. Zhongshan Dajin caster Co.,Ltd. has exceptional characteristics in scientific study and development. Sustainable development for Zhongshan Dajin caster Co.,Ltd. is what we are striving for. Get quote!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
