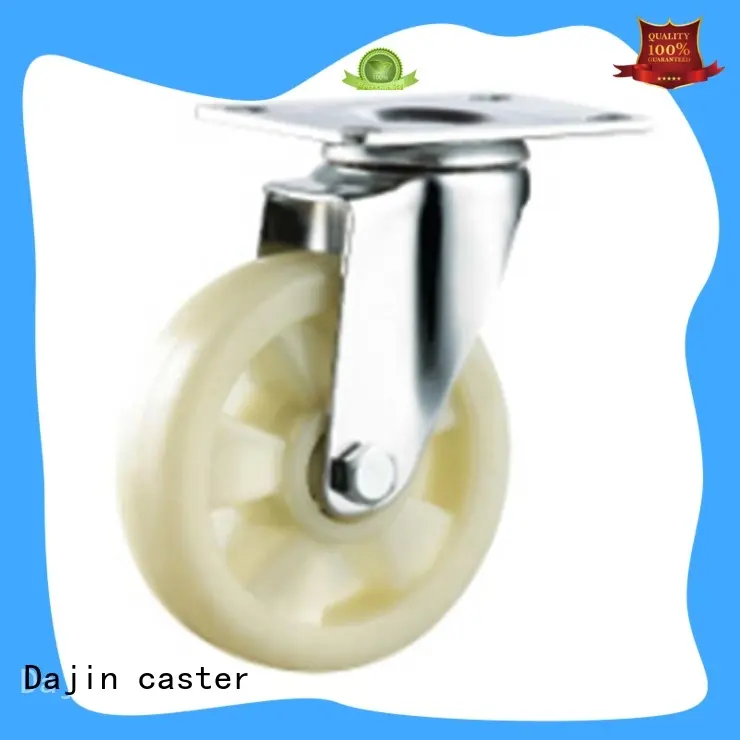

light duty medium duty caster wheels polyurethane for trolleys

Lead Time:

20-25days

OEM Availability:

Yes

MOQ:

1000 pcs

Payment:

L/C, T/T, Western Union

Place of Origin:

China

Brand:

PLEYMA

Inquiry

Company Advantages
1. The production technique implemented in the production of Dajin caster 6 inch swivel caster with brake is advanced and greatly guaranteed. It is a new production technique aimed at minimizing wastage. Its soft wheel prevents damage to the floor during use
2. We will work continuously to produce more innovative products to expand market application needs. Its ball bearings offer smooth rotation without hangs or other issues
3. The product is provided with consistent performance and durability. The wheel material can be rubber, PP, nylon, PU, TPR, etc. depending on the application
4. The product is examined by undergoing detailed tests to guarantee quality and functionality. High-grade metal parts allow it to provide years of durability

light duty medium duty caster wheels polyurethane for trolleys 6

light duty medium duty caster wheels polyurethane for trolleys 7

light duty medium duty caster wheels polyurethane for trolleys 8

Product Parameters

Model	Type	Wheel diameter(mm)	Tread width(mm)	Wheel material	Mounting type	Overall height(mm)	Plate size(mm)	Hole spacing(mm)	Threaded stem size(mm)	Grip ring size(mm)
20Z20PPN1-075	Swivel	75	27	PP	Plate	105	92*65	75*45	/	/
20Z22PPN1-075	Swivel with brake	75	27	PP	Plate	105	92*65	75*45	/	/
20Z30PPN1-075	Swivel	75	27	PP	Threaded stem	105	/	/	M12*30	/
20Z32PPN1-075	Swivel with brake	75	27	PP	Threaded stem	105	/	/	M12*30	/
20Z50PPN1-075	Swivel	75	27	PP	Grip ring	105	/	/	/	M12*60
20Z52PPN1-075	Swivel with brake	75	27	PP	Grip ring	105	/	/	/	M12*60
20Z20PUG0-075	Swivel	75	27	PU	Plate	105	92*65	75*45	/	/
20Z22PUG0-075	Swivel with brake	75	27	PU	Plate	105	92*65	75*45	/	/
20Z30PUG0-075	Swivel	75	27	PU	Threaded stem	105	/	/	M12*30	/
20Z32PUG0-075	Swivel with brake	75	27	PU	Threaded stem	105	/	/	M12*30	/
20Z50PUG0-075	Swivel	75	27	PU	Grip ring	105	/	/	/	M12*60
20Z52PUG0-075	Swivel with brake	75	27	PU	Grip ring	105	/	/	/	M12*60
20Z20PTG0-075	Swivel	75	27	TPR	Plate	105	92*65	75*45	/	/
20Z22PTG0-075	Swivel with brake	75	27	TPR	Plate	105	92*65	75*45	/	/
20Z30PTG0-075	Swivel	75	27	TPR	Threaded stem	105	/	/	M12*30	/
20Z32PTG0-075	Swivel with brake	75	27	TPR	Threaded stem	105	/	/	M12*30	/
20Z50PTG0-075	Swivel	75	27	TPR	Grip ring	105	/	/	/	M12*60
20Z52PTG0-075	Swivel with brake	75	27	TPR	Grip ring	105	/	/	/	M12*60
20Z20PPN1-100	Swivel	100	27	PP	Plate	127	92*65	75*45	/	/
20Z22PPN1-100	Swivel with brake	100	27	PP	Plate	127	92*65	75*45	/	/
20Z30PPN1-100	Swivel	100	27	PP	Threaded stem	127	/	/	M12*30	/
20Z32PPN1-100	Swivel with brake	100	27	PP	Threaded stem	127	/	/	M12*30	/
20Z50PPN1-100	Swivel	100	27	PP	Grip ring	127	/	/	/	M12*60
20Z52PPN1-100	Swivel with brake	100	27	PP	Grip ring	127	/	/	/	M12*60
20Z20PUG0-100	Swivel	100	27	PU	Plate	127	92*65	75*45	/	/
20Z22PUG0-100	Swivel with brake	100	27	PU	Plate	127	92*65	75*45	/	/
20Z30PUG0-100	Swivel	100	27	PU	Threaded stem	127	/	/	M12*30	/
20Z32PUG0-100	Swivel with brake	100	27	PU	Threaded stem	127	/	/	M12*30	/
20Z50PUG0-100	Swivel	100	27	PU	Grip ring	127	/	/	/	M12*60
20Z52PUG0-100	Swivel with brake	100	27	PU	Grip ring	127	/	/	/	M12*60
20Z20PTG0-100	Swivel	100	27	TPR	Plate	127	92*65	75*45	/	/
20Z22PTG0-100	Swivel with brake	100	27	TPR	Plate	127	92*65	75*45	/	/
20Z30PTG0-100	Swivel	100	27	TPR	Threaded stem	127	/	/	M12*30	/
20Z32PTG0-100	Swivel with brake	100	27	TPR	Threaded stem	127	/	/	M12*30	/
20Z50PTG0-100	Swivel	100	27	TPR	Grip ring	127	/	/	/	M12*60
20Z52PTG0-100	Swivel with brake	100	27	TPR	Grip ring	127	/	/	/	M12*60
20Z20PPN1-125	Swivel	125	27	PP	Plate	154	92*65	75*45	/	/
20Z22PPN1-125	Swivel with brake	125	27	PP	Plate	154	92*65	75*45	/	/
20Z30PPN1-125	Swivel	125	27	PP	Threaded stem	154	/	/	M12*30	/
20Z32PPN1-125	Swivel with brake	125	27	PP	Threaded stem	154	/	/	M12*30	/
20Z50PPN1-125	Swivel	125	27	PP	Grip ring	154	/	/	/	M12*60
20Z52PPN1-125	Swivel with brake	125	27	PP	Grip ring	154	/	/	/	M12*60
20Z20PUG0-125	Swivel	125	27	PU	Plate	154	92*65	75*45	/	/
20Z22PUG0-125	Swivel with brake	125	27	PU	Plate	154	92*65	75*45	/	/
20Z30PUG0-125	Swivel	125	27	PU	Threaded stem	154	/	/	M12*30	/
20Z32PUG0-125	Swivel with brake	125	27	PU	Threaded stem	154	/	/	M12*30	/
20Z50PUG0-125	Swivel	125	27	PU	Grip ring	154	/	/	/	M12*60
20Z52PUG0-125	Swivel with brake	125	27	PU	Grip ring	154	/	/	/	M12*60
20Z20PTG0-125	Swivel	125	27	TPR	Plate	154	92*65	75*45	/	/
20Z22PTG0-125	Swivel with brake	125	27	TPR	Plate	154	92*65	75*45	/	/
20Z30PTG0-125	Swivel	125	27	TPR	Threaded stem	154	/	/	M12*30	/
20Z32PTG0-125	Swivel with brake	125	27	TPR	Threaded stem	154	/	/	M12*30	/
20Z50PTG0-125	Swivel	125	27	TPR	Grip ring	154	/	/	/	M12*60
20Z52PTG0-125	Swivel with brake	125	27	TPR	Grip ring	154	/	/	/	M12*60

Product Application

light duty medium duty caster wheels polyurethane for trolleys 9

Product Application

❃ Food service carts

❃Bakery racks

❃ Metal brake/Plastic brake available

Company Features
1. Zhongshan Dajin caster Co.,Ltd. has powerful technical advantage and can develop medium duty caster wheels .
2. We have established a sustainable way to conduct our business. We consciously minimize the environmental impact during the entire life cycle of our products, including recycling and disposal.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
