plastic caster cart swivel for-dollies

OEM Availability:

Yes

Brand:

PLEYMA

Inquiry

Overview

Quick Details

Model Number:
Plastic yoke medium duty caster

Material:
Polypropylene, Steel, Thermoplastic Rubber

Type:
Plate Casters

Style:
Swivel

Place of Origin:
Guangdong, China

Product name:
High Elastic Thermoplastic Rubber Caster wheel

Wheel diameter:
3", 4", 5" (75mm, 100mm, 125mm)

Tread width:
32mm

Bearing:
6202 ball bearing

Wheel material:
elastic Thermoplastic rubber (TPR)

Load Capacity:
70 kg, 90kg, 110kg

Color:
Grey TPR wheel

Wheel rim material:
PP rim

Top plate thickness:
3 mm

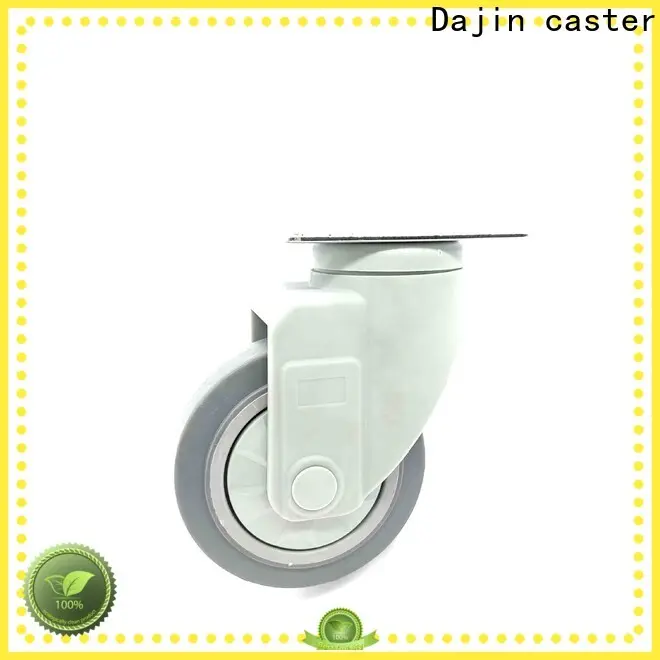

3" 4" 5" USA Standard Top Plate Swivel Waterproof Plastic Fork High Elastic Thermoplastic Rubber Caster wheel

Product Description

A non-marking soft rubber tread wheel used for applications under moderate load ratings.

Applications: Furniture, electronic equipment, medical equipment, food manufacturing, service carts...

The plastic yoke is waterproof, antiurst, anti-corrosive.

Product image	Desc.	Wheel diameter (mm)	Wheel width (mm)	Overall height (mm)	Top plate size (mm)	Hole spacing (mm)	Grip ring stem size (mm)	Threaded stem size (mm)	Load capacity (kg/pc)
	Medium duty plastic yoke caster, high elastic TPR Wheel, grip ring stem / threaded stem / top plate, swivel	75	32	106.5	92*65	73*45	Φ11*36	M12*30	70
		100	32	130.5	92*65	73*45	Φ11*36	M12*30	90
		125	32	155	92*65	73*45	Φ11*36	M12*30	110
	Medium duty plastic yoke caster, high elastic TPR Wheel, grip ring stem / threaded stem / top plate, swivel	75	25X2	110	92*65	73*45	Φ11*36	M12*30	70
		100	25X2	129	92*65	73*45	Φ11*36	M12*30	90
		125	25X2	155	92*65	73*45	Φ11*36	M12*30	110
	Medium duty plastic yoke caster, high elastic TPR Wheel, grip ring stem / threaded stem / top plate, swivel with total brake.	75	25X2	110	92*65	73*45	Φ11*36	M12*30	70
		100	25X2	129	92*65	73*45	Φ11*36	M12*30	90
		125	25X2	155	92*65	73*45	Φ11*36	M12*30	110

Top plate (USA standard mounting dimension)

USA Standard Top Plate Swivel Waterproof Plastic Fork High Elastic Thermoplastic Rubber Caster wheel

For example, we install these plastic yoke casters in this luxury food service trolley.

USA Standard Top Plate Swivel Waterproof Plastic Fork High Elastic Thermoplastic Rubber Caster wheel

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
