Threaded Stem Bolt Hole Solid Stem Top Plate 150 mm 300 KG Capacity Mid Heavy Duty Elastic TPR Swivel Trolley Caster Wheel2

       Freight questions please contact us, we have more shipping methods, may save a lot of freight

 The most important for these mid heavy duty casters is that they are between heavy duty and medium duty casters, the the right load capacity for you.

You can free choose the mounting type for these series:

Threaede stem (Screw stem)

bolt hole ( hollow stem, stemless),

Solid stem ( round stem, square stem with any size you need)

Top plate ( American mounting size, European mounting size, Korean mounting size, Japanese mounting size, or any customized mounting dimension you need).

Product image	Desc.	Wheel diameter (mm)	Wheel width (mm)	Overall height (mm)	Top plate size (mm)	Hole spacing (mm)	Load capacity (kg/pc)
	Medium heavy duty caster, PU Wheel with double ball bearing, rigid.	75	37.5	113	101*82	76*56	120
		100	37.5	139	101*82	76*56	150
		125	37.5	161	112*100	84x74	180
		150	37.5	190	112x100	84x74	200
	Medium heavy duty caster, PU Wheel with double ball bearing, swivel.	75	37.5	113	101*82	76*56	120
		100	37.5	139	101*82	76*56	150
		125	37.5	161	112x100	84x74	180
		150	37.5	190	112x100	84x74	200

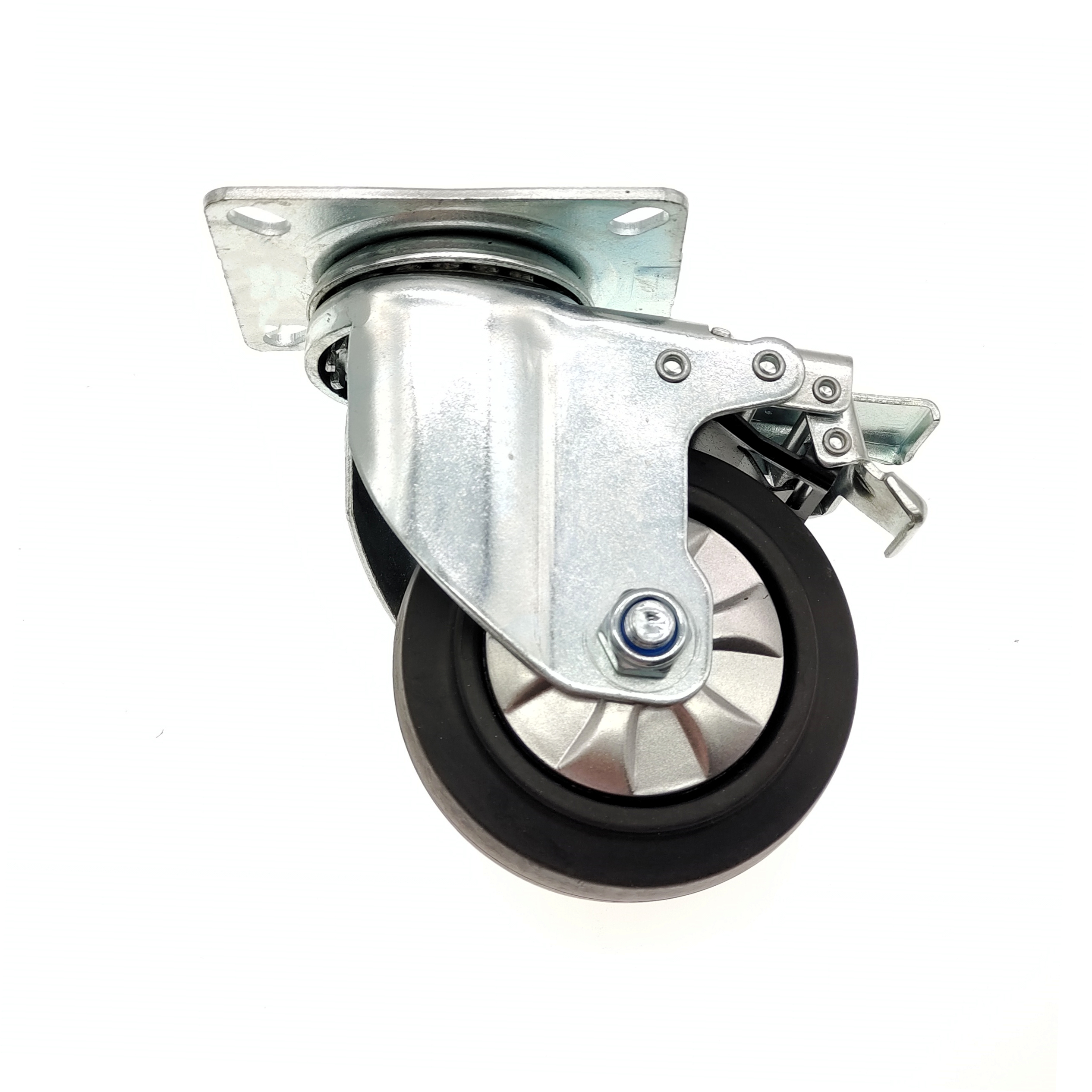

	Medium heavy duty caster, PU Wheel with double ball bearing, swivel with total brake.	75	37.5	113	101*82	76*56	120
		100	37.5	139	101*82	76*56	150
		125	37.5	161	112x100	84x74	180
		150	37.5	190	112x100	84x74	200

All our caster wheels are made of new material, ECO-friendly, good function and long working life.

Our caster forks are ECO-friendly high quality plating, pass the national standard corrosion test.
