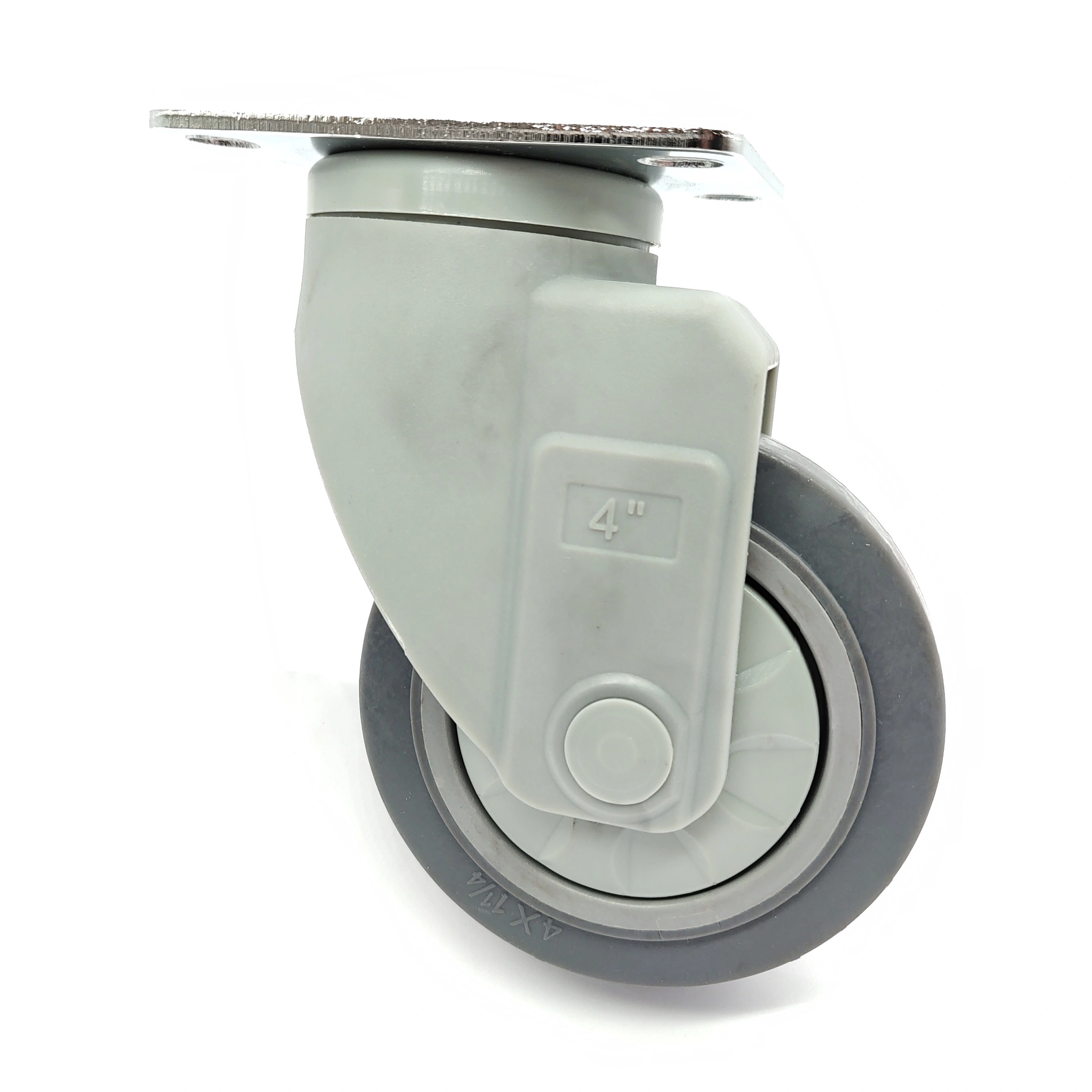

USA Standard Top Plate Swivel Waterproof Plastic Fork High Elastic Thermoplastic Rubber Caster wheel

USA Standard Top Plate Swivel Waterproof Plastic Fork High Elastic Thermoplastic Rubber Caster wheel

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Model Number:
Plastic yoke medium duty caster
Material:
Polypropylene, Steel, Thermoplastic Rubber
Type:
Plate Casters
Style:
Swivel
Place of Origin:
Guangdong, China
Product name:
High Elastic Thermoplastic Rubber Caster wheel
Wheel diameter:
3", 4", 5" (75mm, 100mm, 125mm)
Tread width:
32mm
Bearing:
6202 ball bearing
Wheel material:
elastic Thermoplastic rubber (TPR)
Load Capacity:
70 kg, 90kg, 110kg
Color:
Grey TPR wheel
Wheel rim material:
PP rim
Top plate thickness:
3 mm
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Video Description

3" 4" 5" USA Standard Top Plate Swivel Waterproof Plastic Fork High Elastic Thermoplastic Rubber Caster wheel

Product Description

A non-marking soft rubber tread wheel used for applications under moderate load ratings.

Applications: Furniture, electronic equipment, medical equipment, food manufacturing, service carts...

The plastic yoke is waterproof, antiurst, anti-corrosive.



Product image Desc. Wheel diameter
(mm)
Wheel width
(mm)
Overall height
(mm)
Top plate size
(mm)
Hole spacing
(mm)
Grip ring stem size
(mm)
Threaded stem size
(mm)
Load capacity
(kg/pc)
Medium duty plastic yoke caster, high elastic TPR Wheel, grip ring stem / threaded stem / top plate, swivel 75 32 106.5 92*65  73*45  Φ11*36 M12*30 70
100 32 130.5 92*65  73*45  Φ11*36 M12*30 90
125 32 155 92*65  73*45  Φ11*36 M12*30 110

Medium duty plastic yoke caster, high elastic TPR Wheel, grip ring stem / threaded stem / top plateswivel 75 25X2  110  92*65 73*45  Φ11*36 M12*30 70
 100 25X2  129  92*65  73*45  Φ11*36 M12*30 90
125  25X2  155  92*65  73*45 Φ11*36 M12*30 110
Medium duty plastic yoke caster, high elastic TPR Wheel, grip ring stem / threaded stem / top plateswivel with total brake.  75 25X2  110  92*65 73*45  Φ11*36 M12*30 70
 100 25X2  129 92*65 73*45  Φ11*36 M12*30  90
 125 25X2 155  92*65 73*45 Φ11*36 M12*30  110





 Top plate (USA standard mounting dimension)





For example, we install these plastic yoke casters in this luxury food service trolley.





For more information please contact Ms. Yan +86 138 2277 3800, Wechat: happyyans, Skype: Yan.and.friends
