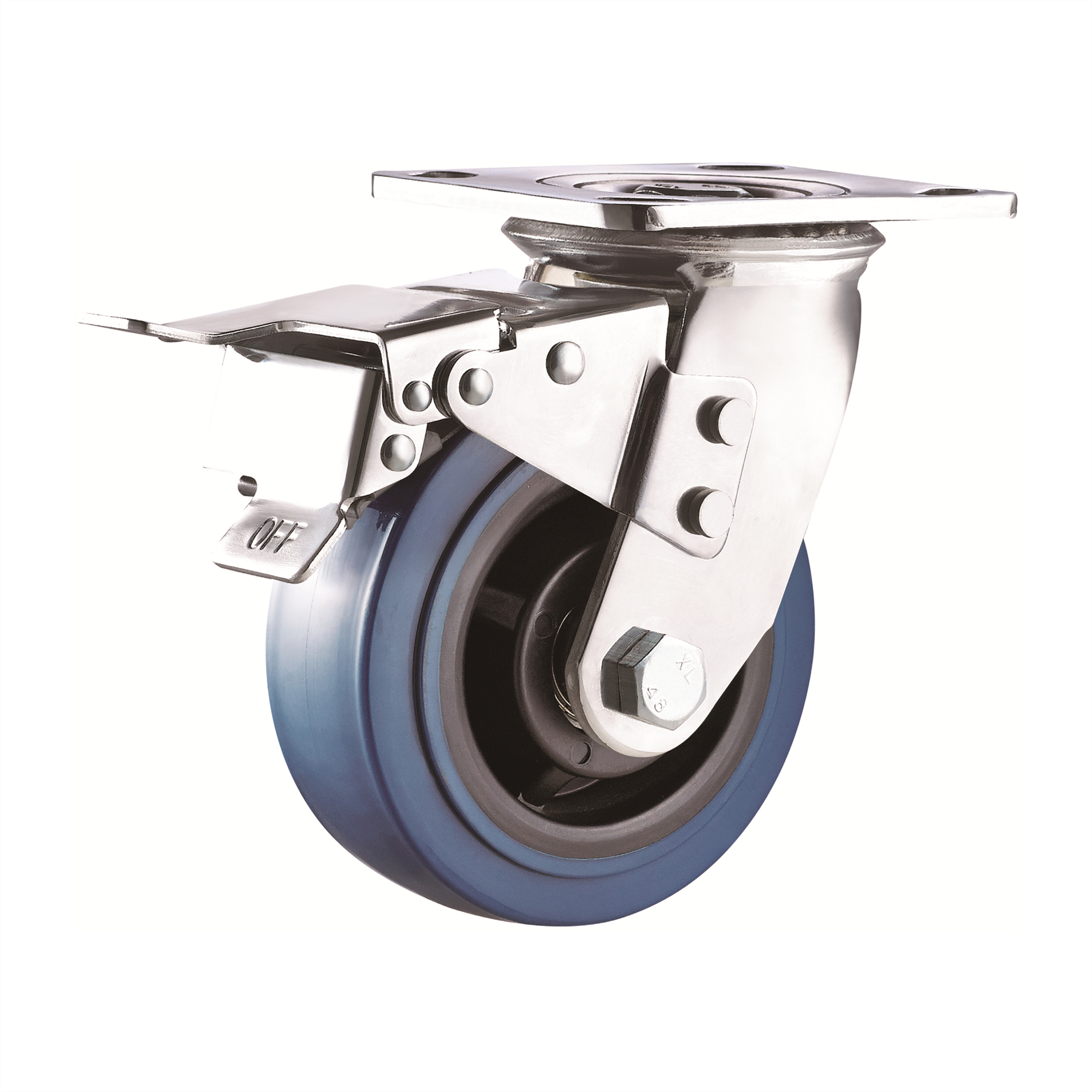

Zhongshan Factory Top Plate Swivel Double Brake 6 Inches Industry Double Ball Bearings Blue PU Caster And Wheel
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
- Model Number:
-
-
- Material:
-
Polypropylene, POLYURETHANE, Steel
- Type:
-
Plate Casters
- Style:
-
Swivel
- Place of Origin:
-
Guangdong, China
- Product name:
-
6" seivel heavy duty double brake PU caster and wheel
- Wheel diameter:
-
6" (150bmm)
- Tread width:
-
2" (50 mm)
- Bearing:
-
6202 double ball bearings
- Wheel material:
-
PU (Polyurethane)
- Load Capacity:
-
330kg
- Color:
-
Red, blue, black...
- Finish:
-
Galvanized
- Plate thickness:
-
5.75 mm
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 10X10X6 cm
- Single gross weight:
- 5.000 kg
- Package Type:
- Zhongshan Factory Top Plate Swivel Double Brake 6 Inches Industry Double Ball Bearings Blue PU Caster And Wheel Standard Export packing
- Picture Example:
-
- Lead Time :
Quantity(Pieces) 1 - 5000 >5000 Est. Time(days) 15 To be negotiated
Zhongshan Factory Top Plate Swivel Double Brake 6 Inches Industry Double Ball Bearings Blue PU Caster And Wheels
Product Description
| Product image | Desc. | Wheel diameter (mm) | Wheel width (mm) | Overall height (mm) | Top plate size (mm) | Hole spacing (mm) | Load capacity (kg/pc) |
| | Heavy duty caster, PU wheel with double ball bearing, fixed. | 100 | 50 | 135 | 114x100 | 85x73 | 220 |
| 125 | 50 | 158 | 114x100 | 85x73 | 280 | ||
| 150 | 50 | 188 | 114x100 | 85x73 | 330 | ||
| 200 | 50 | 235 | 114x100 | 85x73 | 420 | ||
| Heavy duty caster, PU wheel with double ball bearing, swivel. | 100 | 50 | 135 | 114x100 | 85x73 | 220 |
| 125 | 50 | 158 | 114x100 | 85x73 | 280 | ||
| 150 | 50 | 188 | 114x100 | 85x73 | 330 | ||
| 200 | 50 | 235 | 114x100 | 85x73 | 420 | ||
| | Heavy duty caster, PU wheel with double ball bearing, swivel with total brake. | 100 | 50 | 135 | 114x100 | 85x73 | 220 |
| 125 | 50 | 158 | 114x100 | 85x73 | 280 | ||
| 150 | 50 | 188 | 114x100 | 85x73 | 330 | ||
| 200 | 50 | 235 | 114x100 | 85x73 | 420 |
Top plate (USA standard mounting dimension)
All our caster wheels are made of new material, ECO-friendly, good function and long working life.
Our caster forks are ECO-friendly high quality plating, pass the national standard corrosion test.
Patented special brake struture for easy brake and strong brake, no mark on the wheel after braking.
